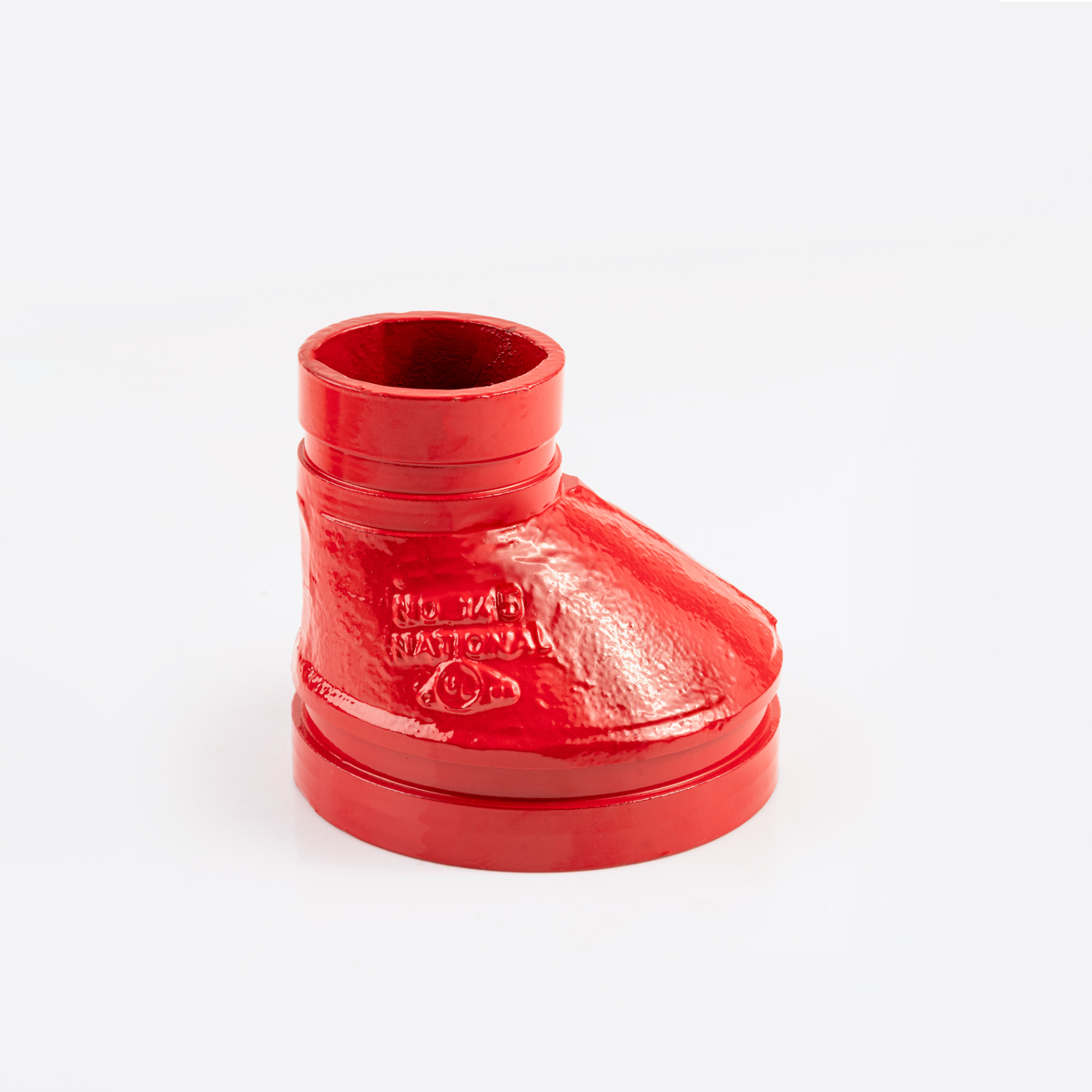

Eccentric Reducer Style 145
Specifications
| Model | End Cap / End of Line |
|---|---|
| Connection | Grooved |
| Temperature | -30 - +230F |
| Pressure | Up to 300 PSI |
| Standards | NFPA 13 |
Got questions?
Feel free to get in touch
Grooved eccentric reducer designed to connect pipes of different diameters while maintaining a flat side profile.
Functionality of the Product
Allows smooth size reduction while maintaining pipe alignment on one side.
Helps prevent air pockets and supports proper drainage in piping layouts.
Material of Construction
Housing: High-strength ductile iron suitable for grooved piping systems
Gasket: Sealing gasket compatible with standard grooved coupling systems
Approvals
UL Listed
FM Approved
Standards of Product
Suitable for grooved piping systems using standard grooved couplings
Usage of Product
Fire protection, mechanical, and building service piping systems requiring eccentric pipe size reduction.
Pressure Details
Designed to operate under pressure ratings consistent with standard grooved coupling systems. Contact OEM for rated pressure.
Finish of Material
Standard finish supplied.
Hot dip galvanized coating available as optional.
