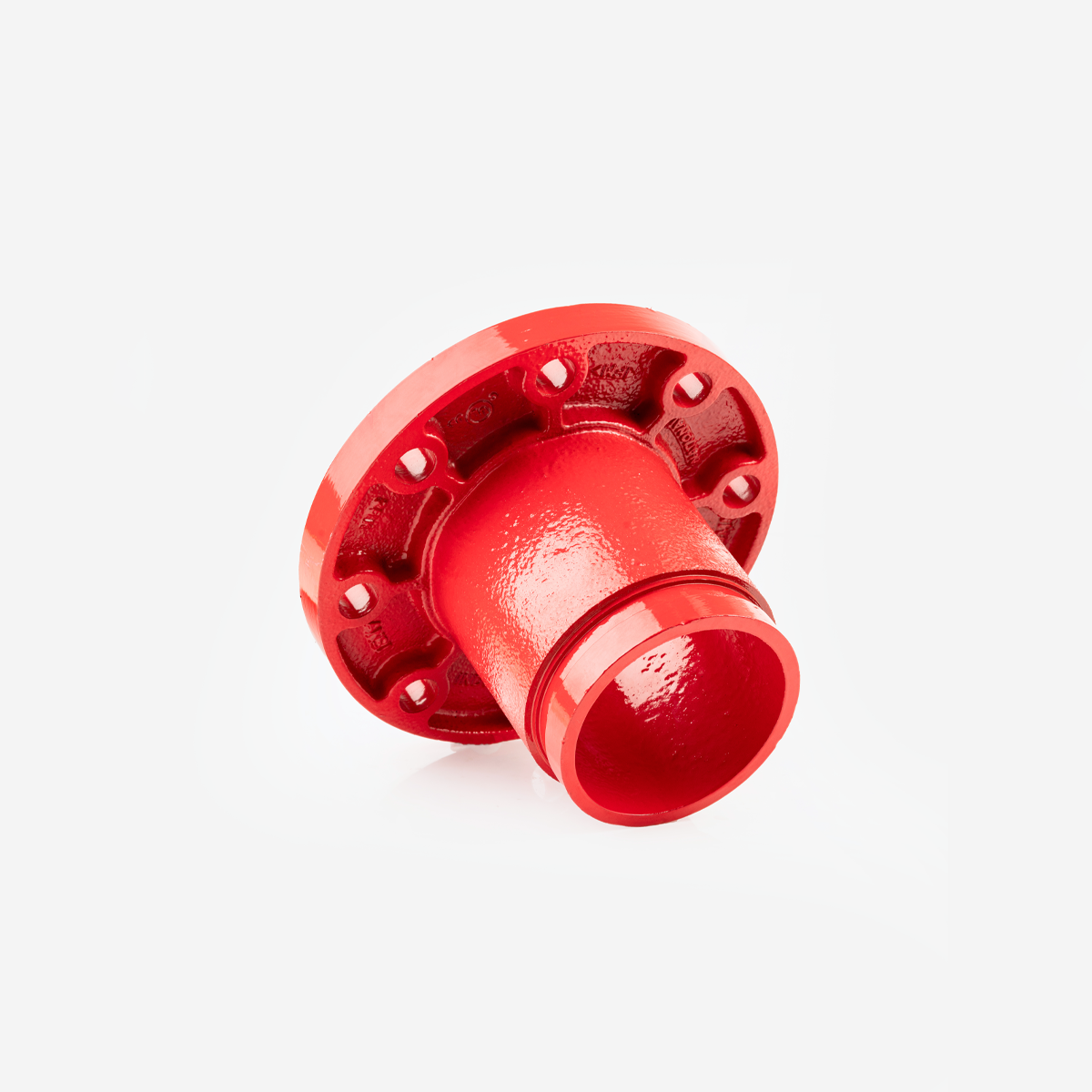

Flange Adapters Style 125
Specifications
| Model | Flange Adapter |
|---|---|
| Connection | Flanged |
| Temperature | -30 - +230F |
| Pressure | Up to 300 PSI |
| Standards | ANSI B16.5, ANSI B31.9 |
Got questions?
Feel free to get in touch
Functionality of the Product
Adapter used to transition between grooved piping and flanged components.
Typical use where a flanged connection is required in a grooved system.
Material of Construction
Ductile iron body. Gasket sealing elastomer to match coupling standards.
Approvals
Identified in National’s product list under flange adapter categories.
Standards of Product
Conforms to grooved system acceptance for connecting flanged equipment.
Usage of Product
Used where grooved pipe needs to mate with flanged valves, pumps, or equipment.
Pressure Details
Designed to match compatible grooved coupling pressure allowances.
Contact OEM for rated pressure.
Finish of Material
Standard protective paint with optional galvanizing.
