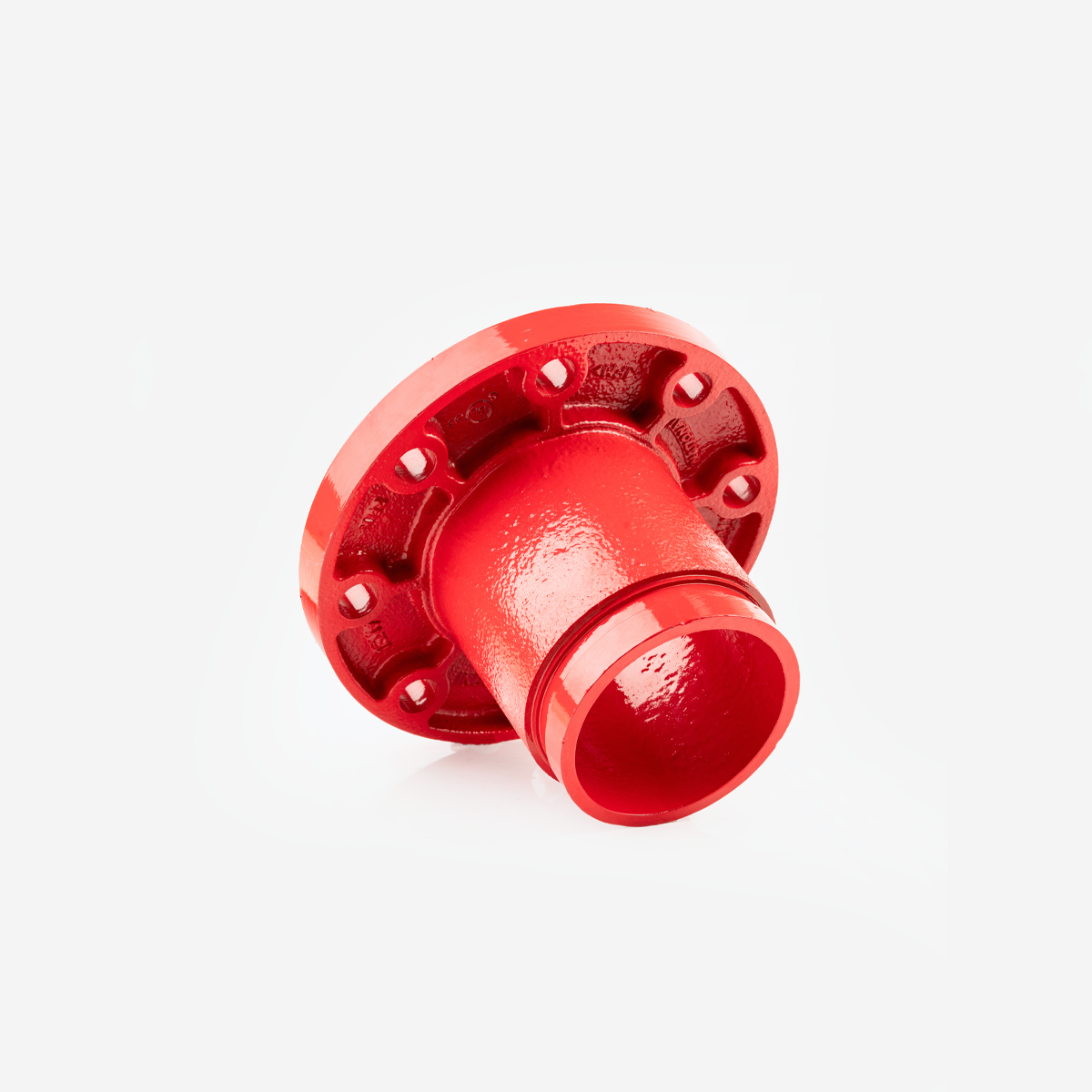

Flange Adapters Style 190
Specifications
| Model | Flange Adapter |
|---|---|
| Connection | Flanged |
| Temperature | -30 - +230F |
| Pressure | Up to 300 PSI |
| Standards | ANSI B16.5, ANSI B31.9 |
Got questions?
Feel free to get in touch
Grooved flange adapters designed to connect flanged components to grooved piping systems.
Functionality of the Product
Provides a rigid transition between grooved piping and flanged connections.
Conforms to ANSI Class 125 and BS Class PN16 flange drilling standards.
Available in plain and threaded configurations to suit system requirements.
Material of Construction
Housing: Ductile iron conforming to ASTM A536
Bolts & Nuts: Bolting suitable for flange adaptor assemblies
Gasket: Sealing gasket compatible with grooved flange connections
Approvals
UL Listed
FM Approved
Standards of Product
ANSI Class 125
BS Class PN16
ASTM A536
Usage of Product
Fire protection, mechanical, and building service piping systems requiring flange-to-groove connections.
Pressure Details
Designed to operate under working pressure conditions applicable to grooved piping systems and flanged joints. Contact OEM for rated pressure.
Finish of Material
Standard finish supplied.
Hot dip galvanized coating available as optional.
