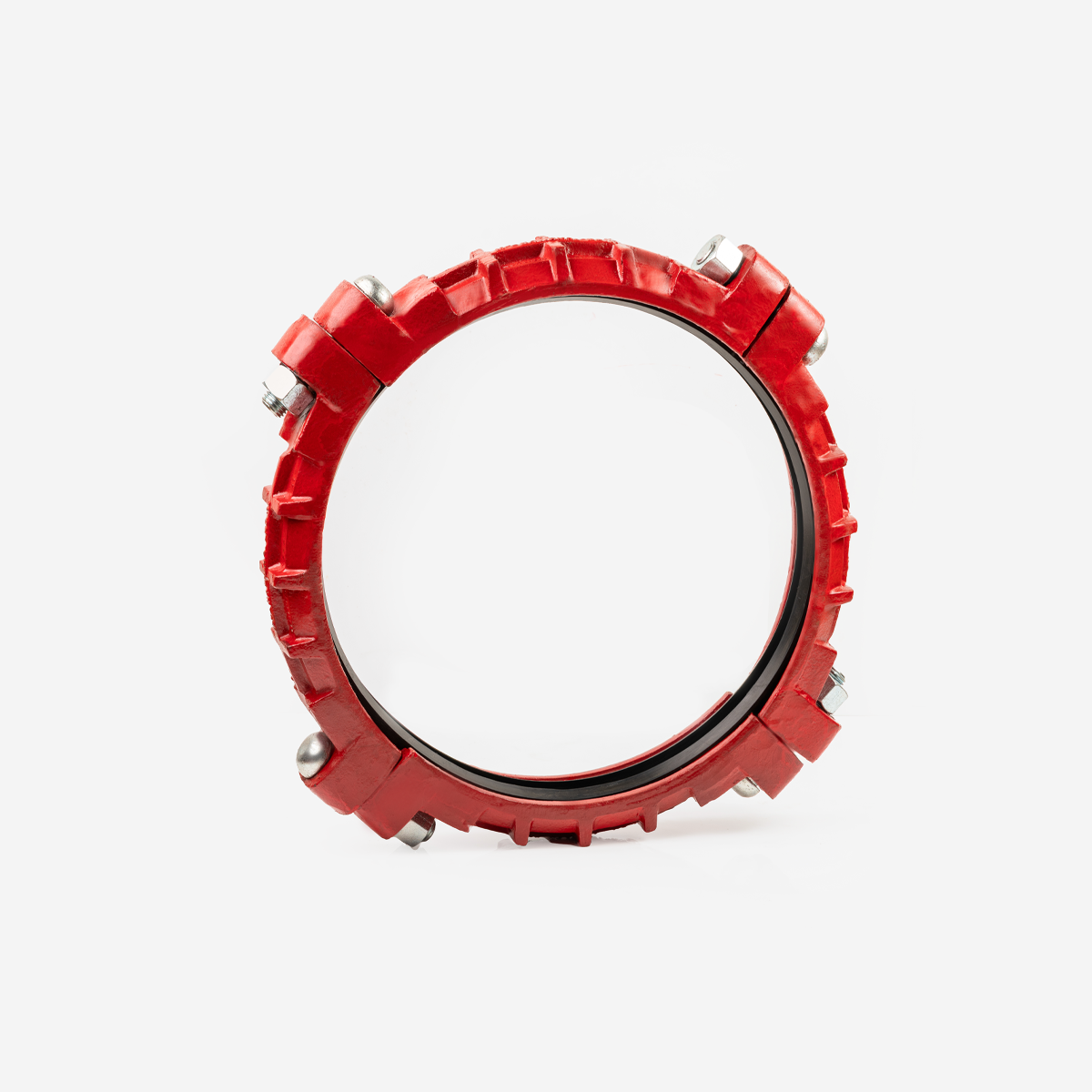

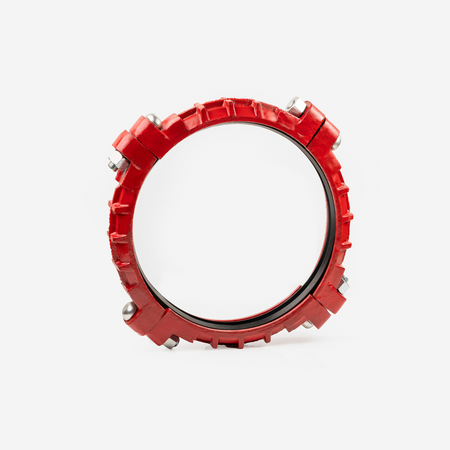

Flexible Coupling Style 11 L
Specifications
| Model | Flexible Coupling |
|---|---|
| Connection | Coupling |
| Temperature | -30 - +230F |
| Pressure | Full Vacum (29.9in hg/760mm hg) |
| Standards | ANSI B31.9 |
Got questions?
Feel free to get in touch
Flexible grooved coupling designed for joining large-diameter piping systems.
Functionality of the Product
Provides a strong and reliable joint with controlled flexibility.
Segmented housing design allows limited movement to accommodate settlement and alignment variations.
Material of Construction
Housing: Segment-type coupling housing designed for large-diameter grooved piping
Bolts & Nuts: Heavy-duty fasteners suitable for large-size couplings
Gasket: Sealing gasket designed for roll grooved steel piping systems
Approvals
UL Listed
FM Approved
Standards of Product
ANSI B31.1
ANSI B31.9
NFPA 13
Usage of Product
Large-diameter fire protection, power piping, and building service piping systems requiring flexibility and alignment tolerance.
Pressure Details
Designed to operate under working pressures suitable for large-diameter roll grooved steel piping, depending on pipe size, material, and wall thickness. Contact OEM for rated pressure.
Finish of Material
Standard finish supplied.
Hot dip galvanized coating available as optional.
