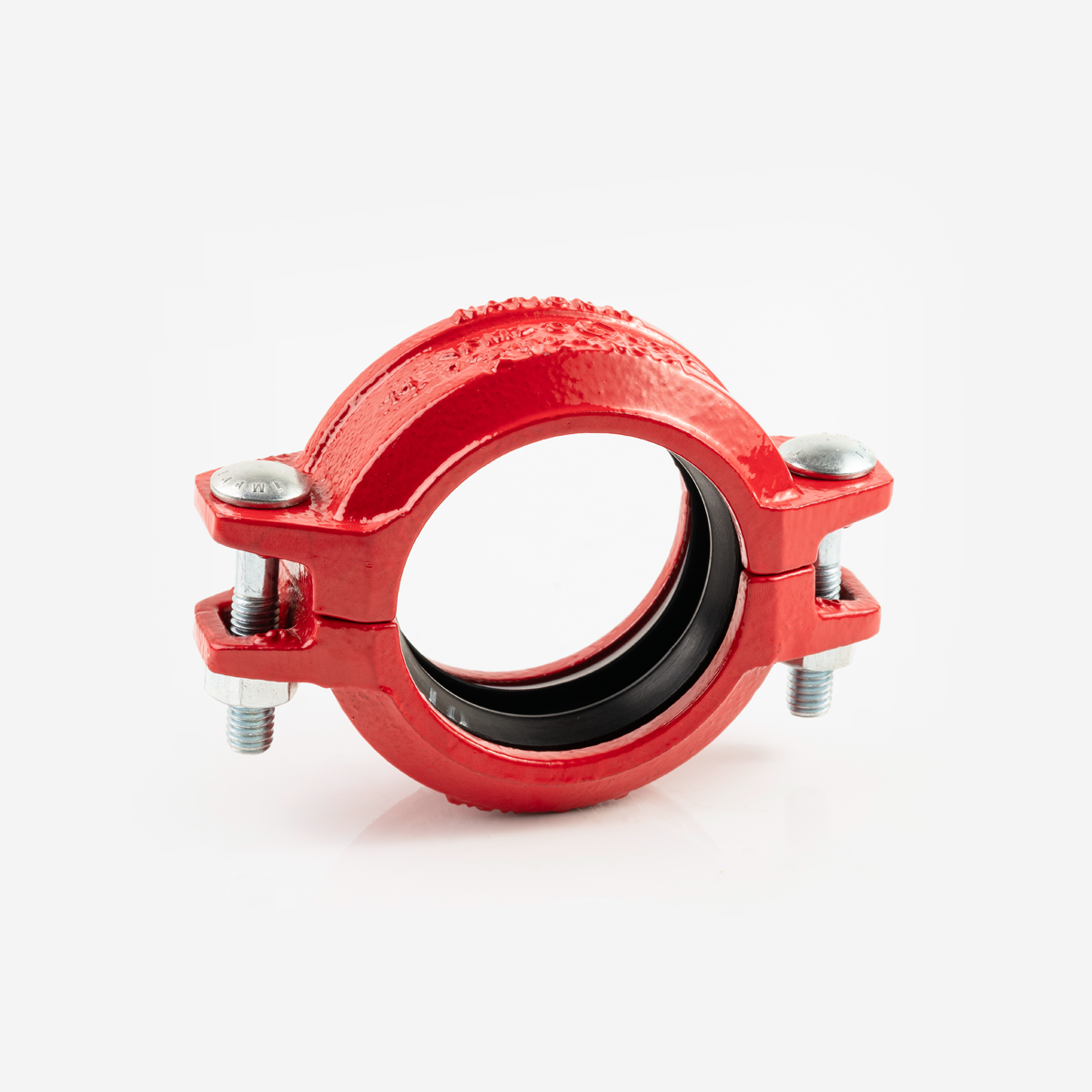

Flexible Coupling Style 12
Specifications
| Model | Flexible Coupling |
|---|---|
| Connection | Coupling |
| Temperature | -30 - +230F |
| Pressure | Upto 435 PSI |
| Standards | ANSI B31.1, ANSI B31.9 |
Got questions?
Feel free to get in touch
Flexible grooved coupling designed for low-pressure piping applications.
Functionality of the Product
Provides joint flexibility required in piping systems.
Allows controlled movement to accommodate installation tolerances and minor pipe misalignment.
Material of Construction
Housing: Economical coupling housing suitable for grooved piping systems
Bolts & Nuts: Standard fasteners for grooved coupling assemblies
Gasket: Sealing gasket suitable for flexible grooved joints
Approvals
UL Listed
Standards of Product
ANSI B31.1
ANSI B31.9
NFPA 13
Usage of Product
Fire protection, building service piping, and low-pressure piping systems where flexibility is required.
Pressure Details
Designed for low-pressure piping applications under standard operating conditions. Contact OEM for rated pressure.
Finish of Material
Standard finish supplied.
Hot dip galvanized coating available as optional.
