Groove Flange Style 14
Specifications
| Model | Grooved Flange Adapter |
|---|---|
| Connection | Grooved × Flanged |
| Temperature | -30 - +230F |
| Pressure | Full Vacum (29.9in hg/760mm hg) |
| Standards | ANSI Class 125, ANSI Class 150, BS 4504 PN16 |
Got questions?
Feel free to get in touch

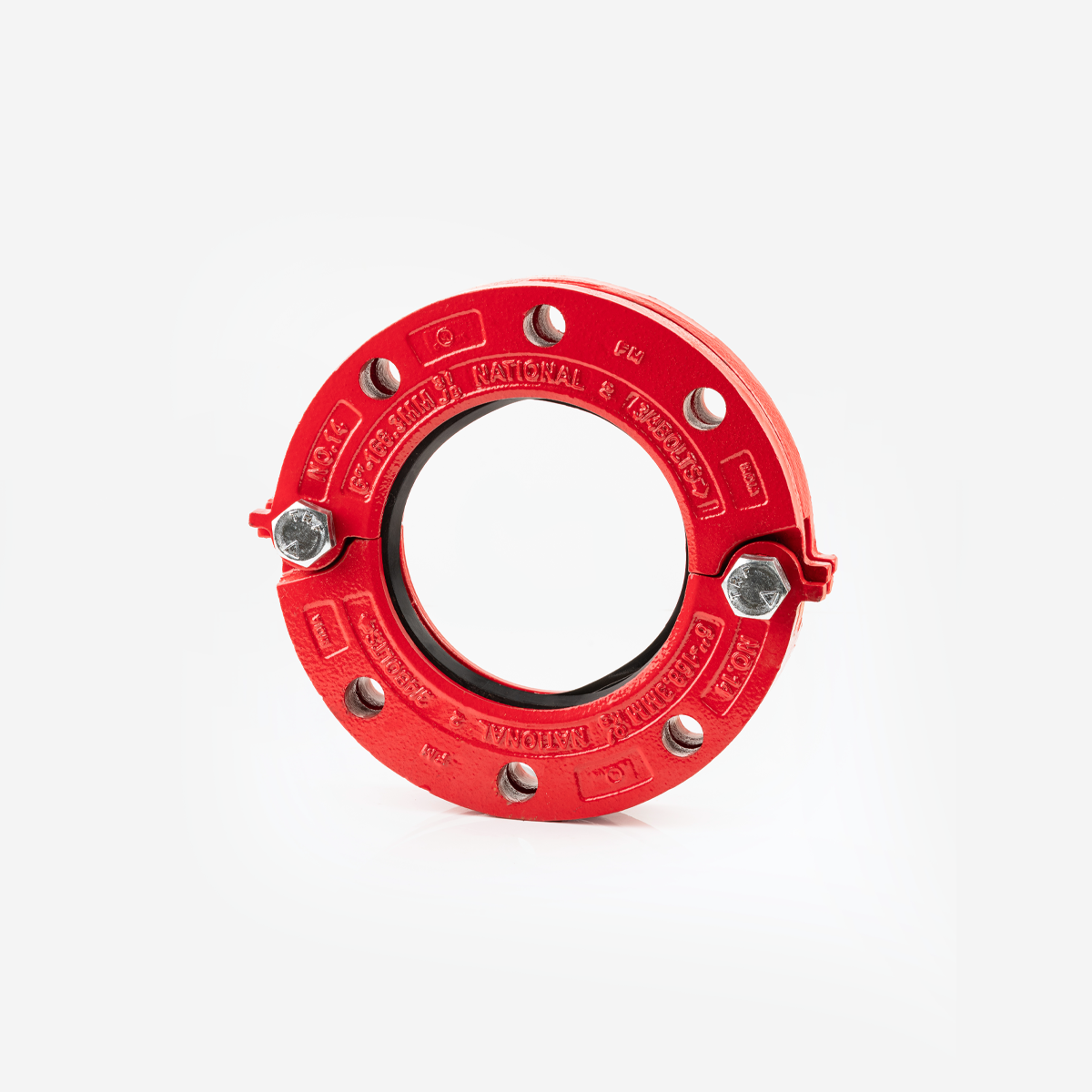

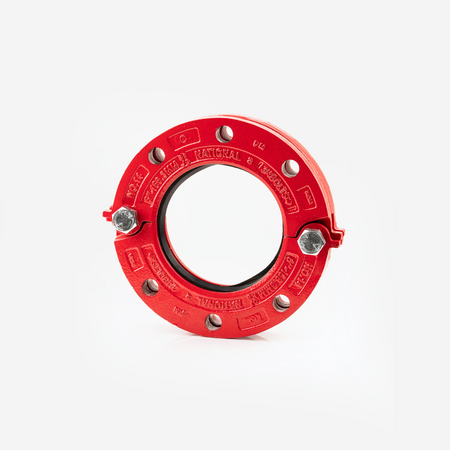

Grooved flange adaptor designed to connect flanged components to grooved piping systems.
Functionality of the Product
Provides a rigid transition between grooved piping and flanged connections.
Designed to connect ANSI Class 125 or 150 and BS 4504 Class PN16 flanged components.
Material of Construction
Housing: Ductile iron conforming to ASTM A536
Bolts & Nuts: Bolting suitable for flanged grooved connections
Gasket: EPDM rubber gasket supplied as standard
Approvals
UL Listed
FM Approved
Standards of Product
ANSI Class 125
ANSI Class 150
BS 4504 Class PN16
Usage of Product
Fire protection, mechanical, and building service piping systems requiring a rigid flange-to-groove connection.
Pressure Details
Designed to operate under working pressure conditions applicable to grooved piping systems and flanged joints. Contact OEM for rated pressure.
Finish of Material
Standard finish supplied.
- Detailed Document 1 Download
