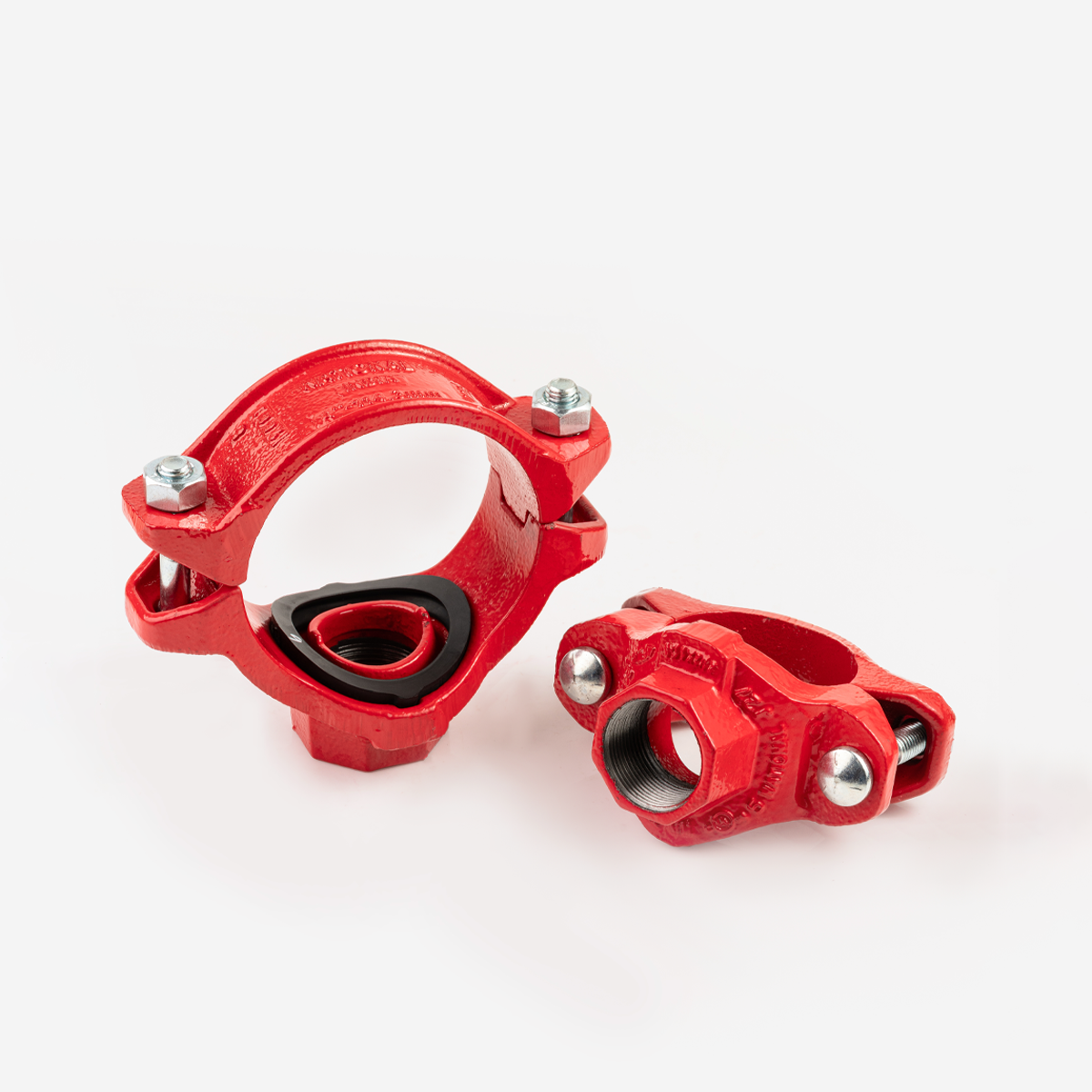

Mechanical Branchlets Style 16

Part number: 016 200 050

Specifications

Model Mechanical Branch Outlet
Connection Mechanical / Threaded
Temperature -30 - +230F
Pressure Full Vacum (29.9in hg/760mm hg)
Standards ASTM A-183 or A-449
Run Size
Outlet Size

Got questions?

Feel free to get in touch

Mechanical branch fittings designed to create direct branch connections on existing pipelines.

Functionality of the Product

Provides a direct branch connection at any location along the pipe run without welding.
 A hole cut along the pipe centreline allows the locator collar to secure the outlet connection.
 Pressure-responsive gasket design ensures a tight, leak-resistant joint.

Material of Construction

Housing: Mechanical branch housing designed for grooved piping systems

Bolts & Nuts: Fasteners suitable for mechanical branch connections

Gasket: Pressure-responsive sealing gasket moulded to suit pipe run diameter

Approvals

UL Listed
 FM Approved

Standards of Product

Suitable for grooved piping systems and mechanical branch connections

Usage of Product

Fire protection, mechanical, and building service piping systems requiring branch outlets without pipe cutting or welding.

Pressure Details

Designed to operate under working pressure conditions suitable for mechanical branch connections in grooved piping systems. Contact OEM for rated pressure.

Finish of Material

Standard finish supplied.
