Reducing Couple Style 25
Specifications
| Model | Grooved Flange Adapter |
|---|---|
| Connection | Flanged |
| Temperature | -30 - +230F |
| Pressure | Full Vacum (29.9in hg/760mm hg) |
| Standards | ANSI Class 125, BS PN16, ASTM A536 |
Got questions?
Feel free to get in touch

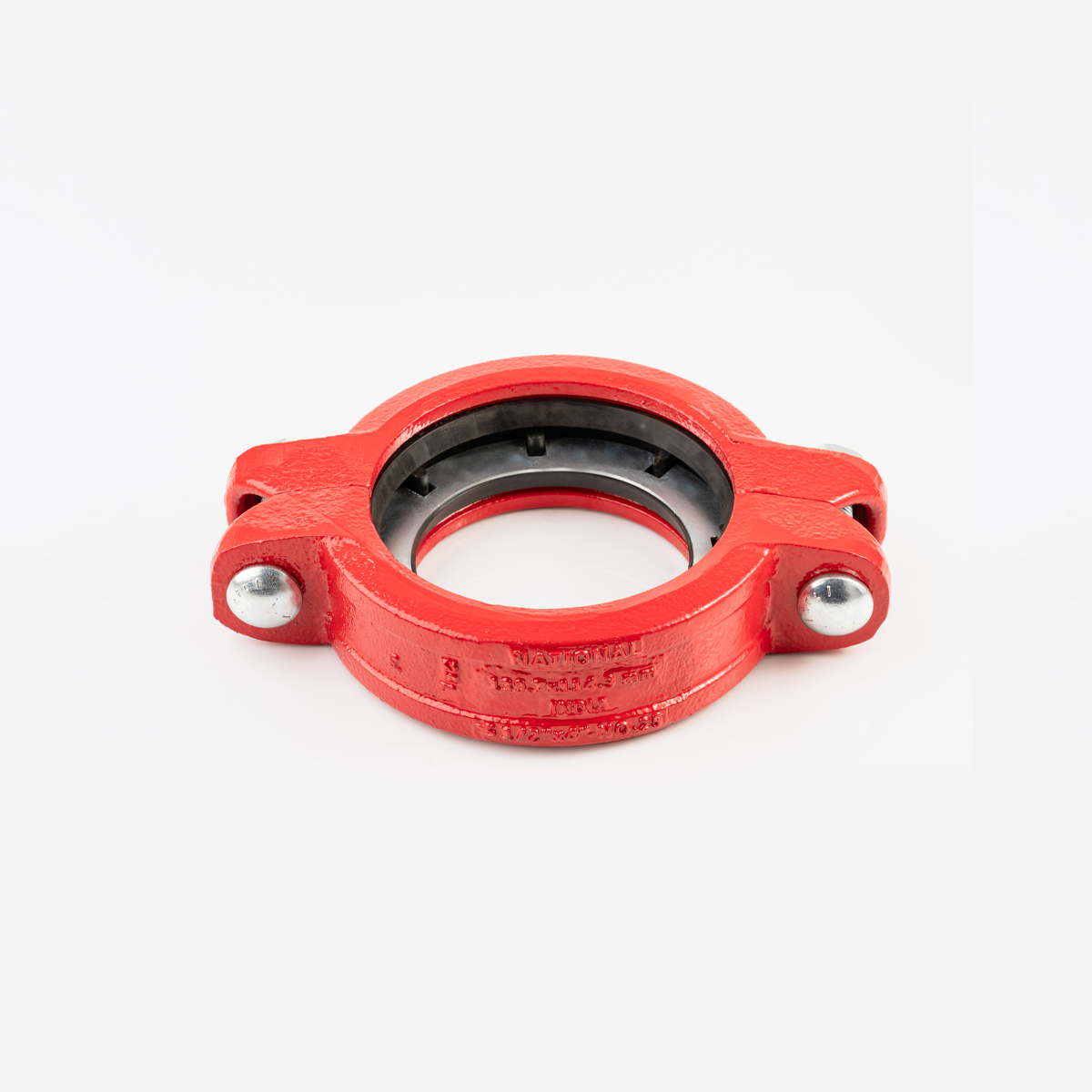

Grooved reducing coupling designed to connect pipes of different nominal sizes in a single joint.
Functionality of the Product
Combines the function of two couplings and an in-line reducer into one compact assembly.
Incorporates an internal metal insert to prevent the smaller pipe from slipping into the larger pipe during vertical installations.
Material of Construction
Housing: Coupling housing with integrated metal insert for size transition applications
Bolts & Nuts: Fasteners suitable for grooved reducing coupling assemblies
Gasket: Sealing gasket designed for concentric and eccentric reducing connections
Approvals
UL Listed
FM Approved
Standards of Product
ANSI B31.1
ANSI B31.9
NFPA 13
Usage of Product
Fire protection, mechanical, and building service piping systems requiring size reduction without additional fittings.
Pressure Details
Designed to operate under working pressure conditions appropriate for grooved reducing pipe connections. Contact OEM for rated pressure.
Finish of Material
Standard finish supplied.
Hot dip galvanized coating available as optional.
