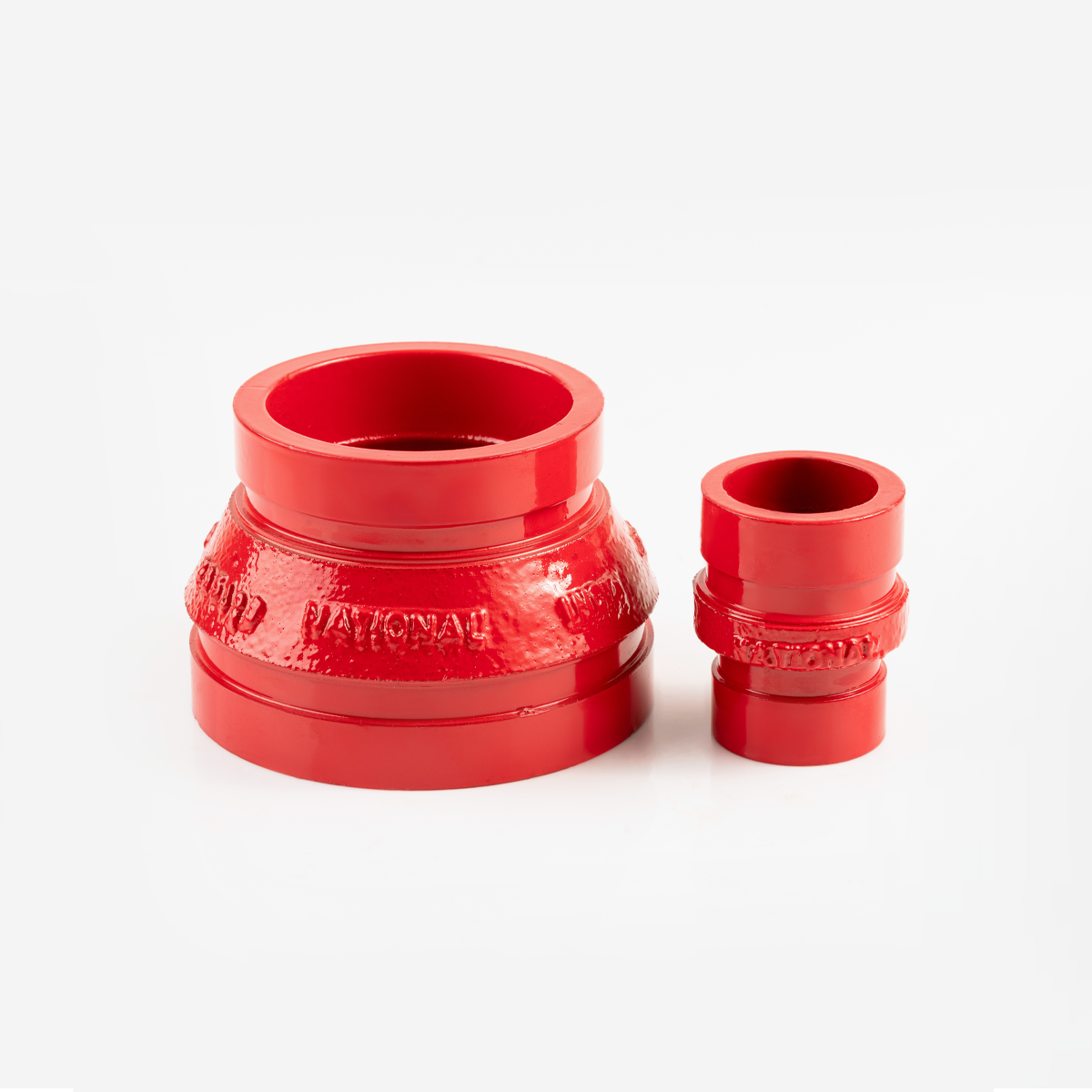

Standard Concentric Reducer Style 140
Specifications
| Model | Concentric Reducer |
|---|---|
| Connection | Grooved |
| Temperature | -30 - +230F |
| Pressure | Up to 300 PSI |
| Standards | ANSI B31.9, NFPA 13 |
Got questions?
Feel free to get in touch
Grooved concentric reducer designed to connect pipes of different diameters while maintaining a common centreline.
Functionality of the Product
Smooth flow design ensures gradual and uniform reduction between pipe sizes.
Pressure ratings of standard fittings conform to Style 11 coupling performance requirements.
Available in plain reducer and threaded outlet configurations.
Material of Construction
Housing: High-strength ductile iron conforming to ASTM A536
Gasket: Sealing gasket compatible with standard grooved coupling systems
Approvals
UL Listed
FM Approved
Standards of Product
ASTM A536
Suitable for grooved piping systems using standard grooved couplings
Usage of Product
Fire protection, mechanical, and building service piping systems requiring concentric pipe size reduction with smooth flow characteristics.
Pressure Details
Designed to operate under pressure ratings consistent with standard grooved coupling systems. Contact OEM for rated pressure.
Finish of Material
Standard finish supplied.
Hot dip galvanized coating available as optional.
