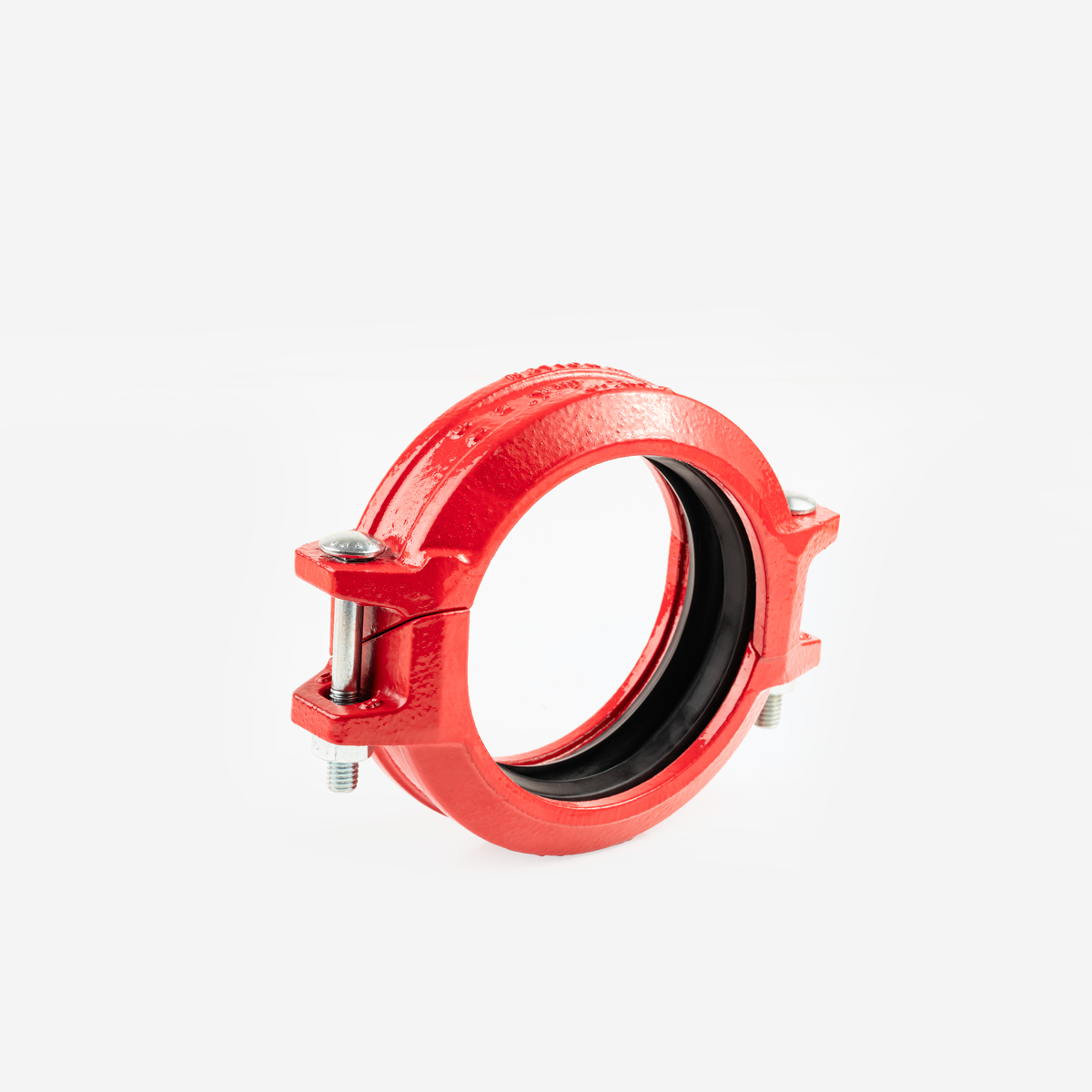

Rigid Coupling Style 5
Specifications
| Model | Rigid Coupling |
|---|---|
| Connection | Coupling |
| Temperature | -30 - +230F |
| Pressure | 250 - 750 PSI |
| Standards | ANSI B31.1, ANSI B31.9 |
Got questions?
Feel free to get in touch
Rigid grooved coupling for fixed, non-deflecting pipe joints.
Functionality of the Product
Tongue-and-groove design restricts axial movement, deflection, and rotation.
Material of Construction
-
Housing: Ductile iron (ASTM A536)
-
Bolts & Nuts: High tensile steel (ASTM A183 / A449, ASTM A194)
-
Gasket: EPDM synthetic rubber
Approvals
Suitable for fire protection and mechanical piping systems.
Standards of Product
ANSI B31.1, ANSI B31.9, NFPA 13 compatible
Usage of Product
Fire protection, HVAC, mechanical, and industrial piping where rigidity is required.
Pressure Details
Rated per grooved piping system limits based on pipe specifications.
Finish of Material
Natural finish standard; hot dip galvanized optional
